IRF7832TRPBF

Giá: 8.000₫ Còn hàng

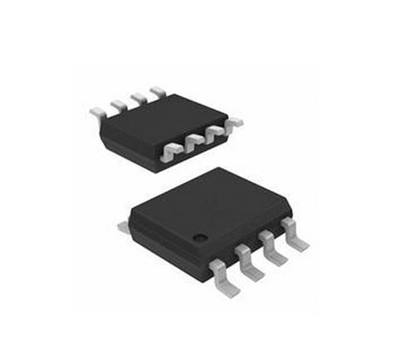

MOSFET N-CH 30V 20A 8-SOIC

MOSFET N-CH 30V 20A 8-SOIC,

FETs - Single
Packaging      Tube
FET Type    MOSFET N-Channel, Metal Oxide
FET Feature    Logic Level Gate
Drain to Source Voltage (Vdss)    30V
Current - Continuous Drain (Id) @ 25°C    20A (Ta)
Rds On (Max) @ Id, Vgs    4 mOhm @ 20A, 10V
Vgs(th) (Max) @ Id    2.32V @ 250µA
Gate Charge (Qg) @ Vgs    51nC @ 4.5V
Input Capacitance (Ciss) @ Vds    4310pF @ 15V
Power - Max    2.5W
Mounting Type    Surface Mount
Package / -SOIC (0.154", 3.90mm Width)

  data sheet

Ứng dụng sản phẩm
