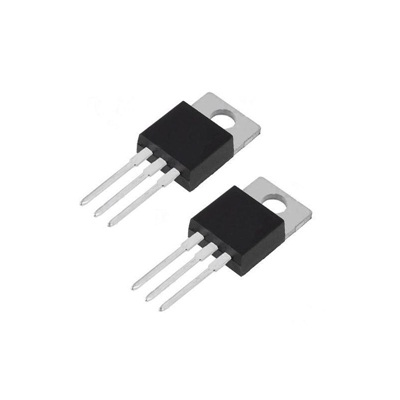

IRFB4019PBF

Giá: 27.000₫ Còn hàng

MOSFET N-CH 150V 17A TO-220AB

MOSFET N-CH 150V 17A TO-220AB,

FET Type MOSFET N-Channel, Metal Oxide

FET Feature Standard

Drain to Source Voltage (Vdss) 150V

Current - Continuous Drain (Id) @ 25°C 17A (Tc)

Rds On (Max) @ Id, Vgs 95 mOhm @ 10A, 10V

Vgs(th) (Max) @ Id 4.9V @ 50µA

Gate Charge (Qg) @ Vgs 20nC @ 10V

Input Capacitance (Ciss) @ Vds 800pF @ 50V

Power - Max 80W

Package / Case TO-220-3

​
data sheet
