LED Display Module 8 Digit MAX7219

Giá: 22.000₫ Còn hàng

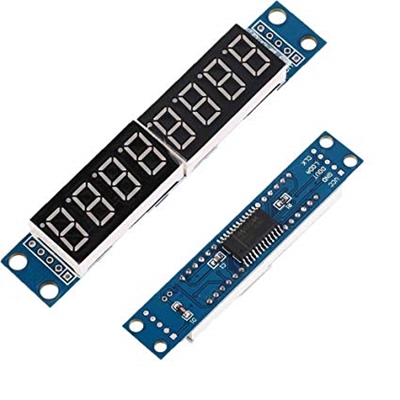

MAX7219 LED  8 Digit Digital Tube Display Module For Arduino

MAX7219 digital display control module
This module is compatible with 5V and 3.3V microcontrollers.
You you can use it for Arduino
MAX7219 is an integrated serial input / output common-cathode display driver,which connects your microprocessor to a 7-segment digital LED display with 8 digits.Only three IO ports are used to drive the eight digit display.
MAX7219 supports flicker free displays as well as cascading displays.
Wiring instructions(for example, it can connect any IO port,modified the Port Definition in the program):
VCC: 5V
GND: GND
DIN: P00
CS: P01
CLK: P02
