Module SHTC3 I2C Digital Temperature and Humidity

Giá: 50.000₫ Còn hàng

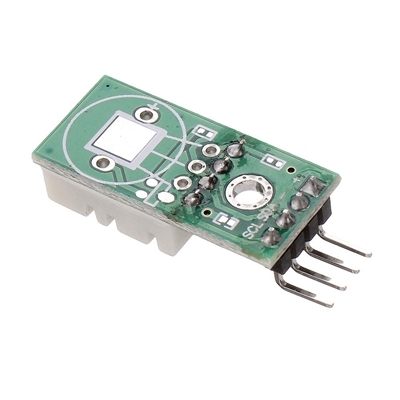

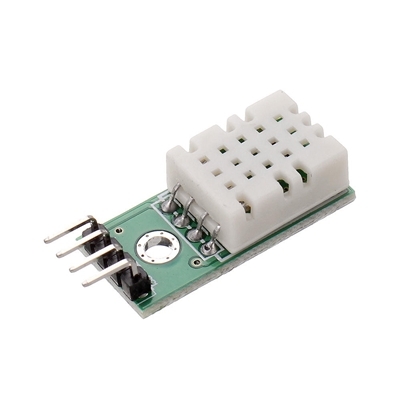

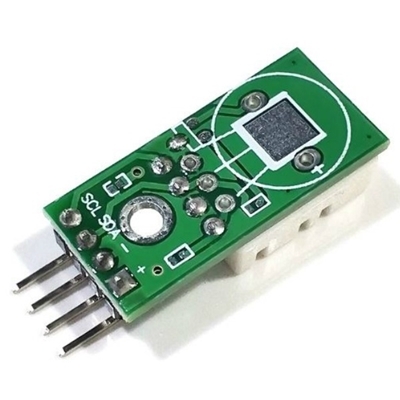

SHTC3 I2C High precision digital temperature and humidity sensor module Communication AM2302 DHT22

SHTC3 I2C High precision digital temperature and humidity sensor module Communication AM2302 DHT22
 1. VDD 3.3-5.5V DC power supply unit
2. Grounding GND, cathode power supply
3. Serial data SDA, Bidirectional port
4. Serial SCL clock, input port
Technical data:
1. Humidity measuring range: 0-100% rh
2. Accuracy of humidity measurement: + 2% rh
3. Temperature measurement range: - 40-125 C
4. Accuracy of temperature measurement: +0.2 C
5. Working voltage: 3.3 ~ 5VDC
6. I2C interface output
Applications:
HVAC, dehumidifiers, agriculture, cold chain storage, testing and testing equipment, consumer goods, cars, automatic control, data recording, weather stations, household appliances, level control humidification, medical treatment and other related humidity detection and control.
Package Included:
1 x SHTC3 high precision digital temperature and humidity sensor module
