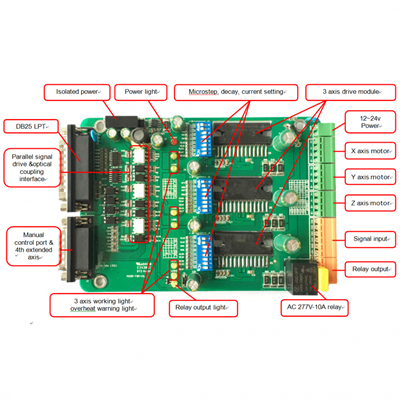

TB6560 3A 3 axis Controller Stepper Motor Driver
Working voltage DC 10V-35V.you are adviced to use DC 24V
It use high speed light lotus root to sure high speed with no step out
There is low pressure off,stop when overheating or strong current
The rated maximum output: ?3A，Vpp 3.5A.
Suit for two-phase/four-phase/six-phase,stepping motor under 3A current,but not suit for stepping motor higher than 3A.
Half a stream automatically
Subdivide: synchronizing, half step,1/8 step,1/16 step,16 divide at most
