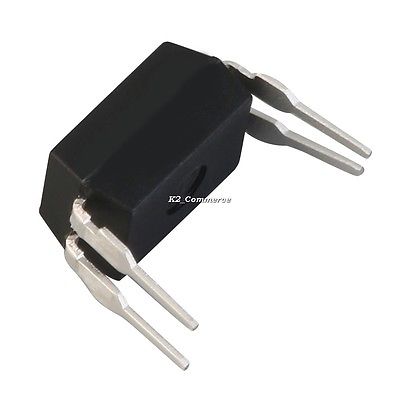

PC817 PINDIP SHARP

Giá: 1.700₫ Còn hàng

OPTOISOLATOR 5KV TRANS 4 PINDIP

OPTOISOLATOR 5KV TRANS 4 PINDIP,

Optoisolators - Transistor, Photovoltaic Output
Packaging     tube
Number of Channels    1
Voltage - Isolation    5000Vrms
Current Transfer Ratio (Min)    50% @ 5mA
Current Transfer Ratio (Max)    600% @ 5mA
Turn On / Turn Off Time (Typ)    -
Rise / Fall Time (Typ)    4µs, 3µs
Input Type    DC
Output Type    Transistor
Voltage - Output (Max)    80V
Current - Output / Channel    50mA
Voltage - Forward (Vf) (Typ)    1.2V
Current - DC Forward (If) (Max)    50mA
Vce Saturation (Max)    200mV
Mounting Type    Surface Mount
Package / Case    4 PINDIP

  data sheet




    Ứng dụng sản phẩm
