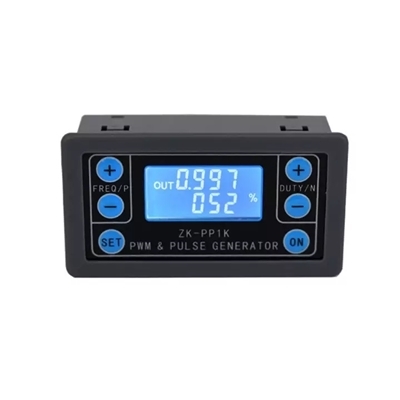

Signal Generator Square Wave ZK-PP1K

Giá: 95.000₫ Còn hàng

Signal Generator Square Wave Generator 1-Channel 1Hz-150KHz Dual Mode LCD PWM Pulse Frequency Duty Cycle Adjustable Module

Signal Generator Square Wave Generator 1-Channel 1Hz-150KHz Dual Mode LCD PWM Pulse Frequency Duty Cycle Adjustable Module
 2.Features:

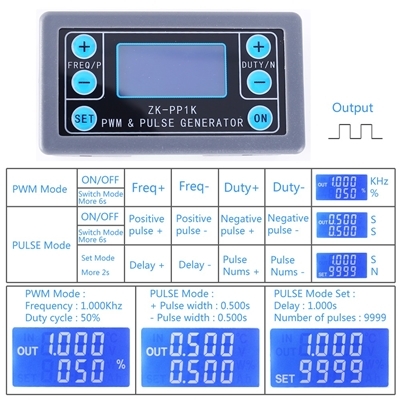

    1>.Dual mode:PWM mode and PULSE mode
    2>.LCD high definition display
    3>.Support frequency adjustment
    4>.Support duty cycle adjustment
    5>.High precision detection
    6>.Support power-down memory function
    7>.1-Channel signal output
    8>.Support reverse protection

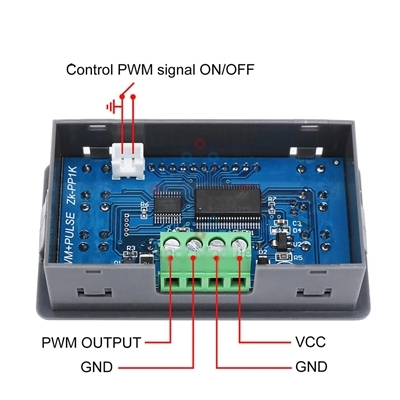

    9>.Support enabled/disabled output

3.Parameters:
    1>.Product name: ZK-PP1K PWM Signal Generator
    2>.Model: ZK-PP1K
    3>.Work voltage:DC 3.3V-30V
    4>.Frequency range:1Hz~150KHz
    5>.Frequency accuracy:2%
    6>.Duty cycle range:0.00%-100%
    7>.Output Current:<30mA
    8>.Number of pulses:1~9999 or Infinite
    9>.Delay time:0.000s~9999s
    10>.Pulse width:0.000s~9999s
    11>.Time accuracy:1ms
    12>.Output amplitude:Same to input voltage
    13>.Work Temperature:-20℃~85℃
    14>.Work Humidity:0%~95%RH

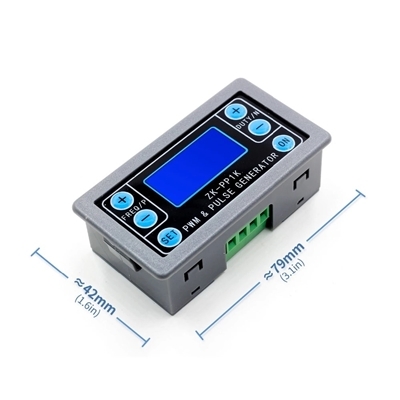

    15>.Size:79*43*26mm
