Step Up Module DC In 10-60 Out 12-80V-12A

Giá: 180.000₫ Còn hàng

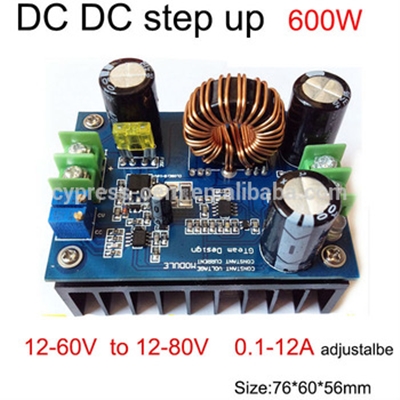

600W boost module power supply DC-DC constant current and constant voltage 9-60V to 12-80V 48V 72V



600W boost module power supply DC-DC constant current and constant voltage 9-60V to 12-80V 48V 72V
Module name: 600W boost constant current module
Module property: Non isolated boost module(can not Buck)
The input voltage:Two optional input voltage range, (jumper cap) on the plate
1,8-16The V input (for three string lithium battery and 12V applications)Please do not exceed the input in this input, Otherwise it will burn out module!!!!!!
2,12-60V inputFactory default range(for wide input voltage range applications)
Input current: 16A (MAX) more than 10A, please strengthen the cooling, the board set aside fan interface, can be used for cooling fan power supply.
Static working current:15mA (12V liter 20V, the output voltage, the more Gao Jing current will increase)
Output voltage:12-80VContinuously adjustable
Output current:12MAX A more than 10A, please strengthen the heat (and input, the output voltage is related, the lower the pressure, the greater the output current is smaller)
Constant current range:0.9-12A
Output power: =The input voltage * 10. A, such as: input 12 v * = 120 w, 10 a 24 v input * 10 a = 240 w,
36V*10A=360W input, 48V*10A=480W input, 60V*10A=600W input
Working temperature: -40~+85 degree (please strengthen environmental temperature too high heat)
Operating frequency:150KHz
