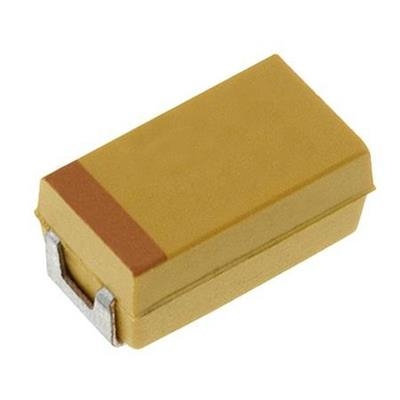

T491A475K016AT

Giá: 1.000₫ Còn hàng

4.7µF/ 16V ±10% Molded Tantalum Capacitors 16V 1206 (3216 Metric) 4 Ohm

4.7µF ±10% Molded Tantalum Capacitors 16V 1206 (3216 Metric) 4 Ohm
Capacitance     4.7µF
Tolerance     ±10%
Voltage - Rated     16V
Type     Molded
ESR (Equivalent Series Resistance)     4 Ohm
Operating Temperature     -55°C ~ 125°C
Lifetime @ Temp.     2000 Hrs @ 85°C
Mounting Type     Surface Mount

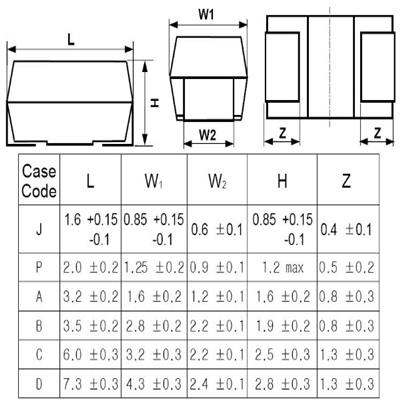

Package / Case     1206 (3216 Metric)
Size / Dimension     0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)     0.071" (1.80mm)
Lead Spacing     -
Manufacturer Size Code     A

data sheet

data sheet
Ứng dụng sản phẩm
