TLP2630

Giá: 10.000₫ Còn hàng

OPTOISO 2.5KV 2CH OPEN COLL 8DIP

OPTOISO 2.5KV 2CH OPEN COLL 8DIP,

Family    Optoisolators - Logic Output
Packaging      Tube
Number of Channels    2
Inputs - Side 1/Side 2    2/0
Voltage - Isolation    2500Vrms
Common Mode Transient Immunity (Min)    200V/µs, 500V/µs (Typ)
Input Type    DC
Output Type    Open Collector, Schottky Clamped
Current - Output / Channel    16mA
Data Rate    10MBd
Propagation Delay tpLH / tpHL (Max)    75ns, 75ns
Rise / Fall Time (Typ)    30ns, 30ns
Voltage - Forward (Vf) (Typ)    1.65V
Current - DC Forward (If) (Max)    20mA
Voltage - Supply    4.5 V ~ 5.5 VC
Mounting Type    Through Hole

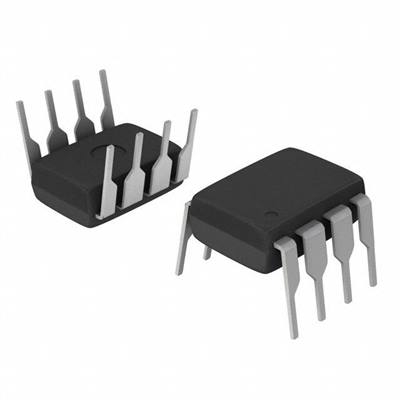

Package / 8-DIP
