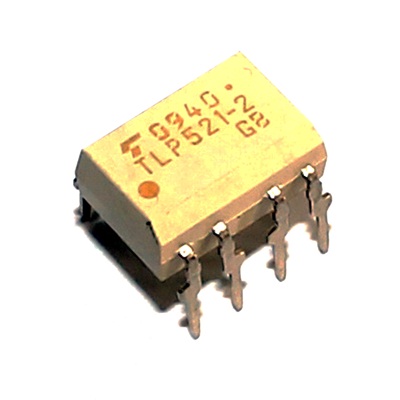

TLP521-2

Giá: 5.000₫ Còn hàng

OPTOISO 7.5KV TRANS W/BASE 8DIP

OPTOISO 7.5KV TRANS W/BASE 8DIP,

Optoisolators - Transistor, Photovoltaic Output
Packaging      Tube
Number of Channels    2
Voltage - Isolation    7500Vpk
Current Transfer Ratio (Min)    100% @ 10mA
Current Transfer Ratio (Max)    -
Turn On / Turn Off Time (Typ)    2µs, 2µs
Rise / Fall Time (Typ)    -
Input Type    DC
Output Type    Transistor with Base
Voltage - Output (Max)    30V
Current - Output / Channel    -
Voltage - Forward (Vf) (Typ)    1.18V
Current - DC Forward (If) (Max)    60mA
Vce Saturation (Max)    300mV
Mounting Type    Through Hole
Package /8-DIP (0.300", 7.62mm)

  data sheet





Ứng dụng sản phẩm
