TLP550

Giá: 24.000₫ Còn hàng

OPTOISOLATOR 2.5KV TRANS 8-DIP

OPTOISOLATOR 2.5KV TRANS 8-DIP,

Optoisolators - Transistor, Photovoltaic Output
Packaging      Tube
Number of Channels    1
Voltage - Isolation    2500Vrms
Current Transfer Ratio (Min)    10% @ 16mA
Current Transfer Ratio (Max)    -
Turn On / Turn Off Time (Typ)    0.3µs, 1µs
Rise / Fall Time (Typ)    -
Input Type    DC
Output Type    Transistor
Voltage - Output (Max)    15V
Current - Output / Channel    8mA
Voltage - Forward (Vf) (Typ)    1.65V
Current - DC Forward (If) (Max)    25mA
Vce Saturation (Max)    -
Mounting Type    Through Hole

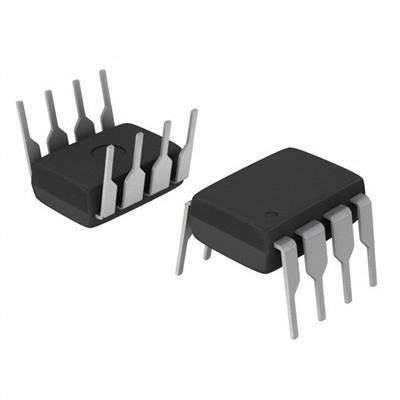

Package / 8-DIP (0.300", 7.62mm)

   data sheet
