AJA106K016RNJ

Giá: 1.200₫ Còn hàng

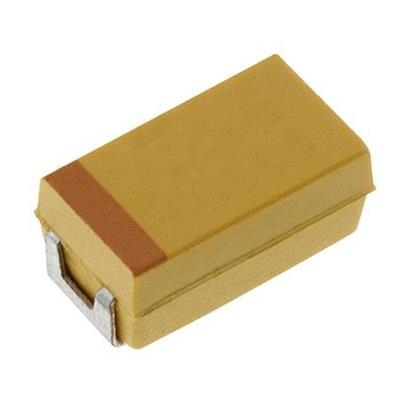

10µF/ 16V ±10% Molded Tantalum Capacitors 16V 1206 (3216 Metric) 3 Ohm

10µF ±10% Molded Tantalum Capacitors 16V 1206 (3216 Metric) 3 Ohm
Capacitance     10µF
Tolerance     ±10%
Voltage - Rated     16V
Type     Molded
ESR (Equivalent Series Resistance)     3 Ohm
Operating Temperature     -55°C ~ 125°C
Lifetime @ Temp.     -
Mounting Type     Surface Mount
Package / Case     1206 (3216 Metric)

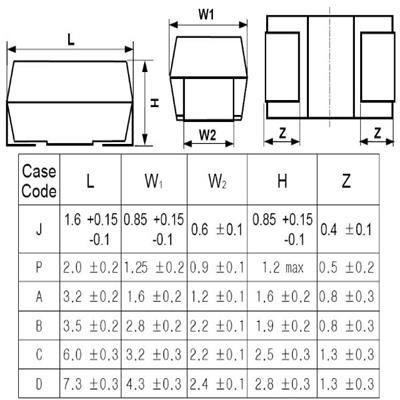

Size / Dimension     0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)     0.071" (1.80mm)
Lead Spacing     -
Manufacturer Size Code     A

data sheet

data sheet
Ứng dụng sản phẩm
