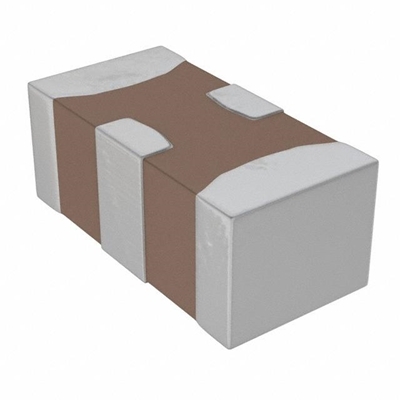

YFF21PC1E104MT000N Filter for power line

Giá: 1.800₫ Còn hàng

Feedthrough filter for power line 25V 2A 0805 (2012 Metric)

Feedthrough filter for power line 25V 2A 0805 (2012 Metric)
0.1µF Feed Through Capacitor 25V 2A 80 mOhm 0805 (2012 Metric)
Part Status     Active
Capacitance     0.1µF
Tolerance     ±20%
Voltage - Rated     25V
Current     2A
DC Resistance (DCR) (Max)     80 mOhm
Operating Temperature     -55°C ~ 125°C
Insertion Loss     40dB @ 7MHz ~ 1GHz
Temperature Coefficient     -
Ratings     -
Mounting Type     Surface Mount
Package / Case     0805 (2012 Metric), 4 PC Pad
Size / Dimension     0.079" L x 0.049" W (2.00mm x 1.25mm)

data sheet
