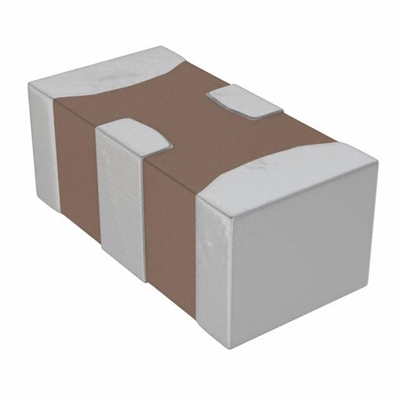

YFF31PC1C224MT000N Filter for power line

Giá: 2.800₫ Còn hàng

Feedthrough filter for power line 16V 2A 1206 (3216 Metric)

Feedthrough filter for power line 16V 2A 1206 (3216 Metric)
0.22µF Feed Through Capacitor 16V 2A 40 mOhm 1206 (3216 Metric)
Part Status     Active
Capacitance     0.22µF
Tolerance     ±20%
Voltage - Rated     16V
Current     2A
DC Resistance (DCR) (Max)     40 mOhm
Operating Temperature     -55°C ~ 125°C
Insertion Loss     40dB @ 3MHz ~ 600MHz
Temperature Coefficient     -
Mounting Type     Surface Mount
Package / Case     1206 (3216 Metric), 4 PC Pad
Size / Dimension     0.126" L x 0.063" W (3.20mm x 1.60mm)
Height (Max)     0.057" (1.45mm)

data sheet
