MINISMDC260F/12-2

Giá: 2.000₫ Còn hàng

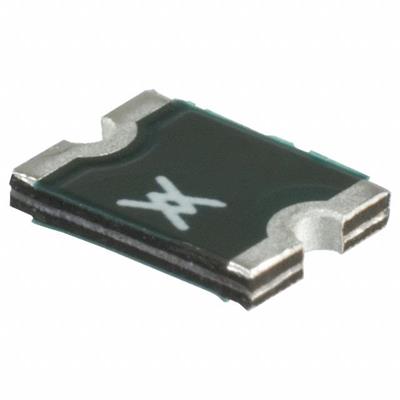

PTC Resettable Fuse 12V 2.6A Ih Surface Mount 1812 (4532 Metric)

PTC Resettable Fuse 12V 2.6A Ih Surface Mount 1812 (4532 Metric)
Voltage - Max     12V
Current - Max     100A
Current - Hold (Ih) (Max)     2.6A
Current - Trip (It)     5A
R Min/Max     0.015 ~ 0.047 Ohm
Time to Trip     5s
Mounting Type     Surface Mount
Package / Case     1812 (4532 Metric), Concave

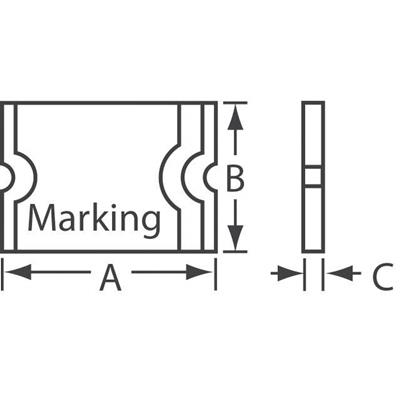

Size / Dimension     0.181" L x 0.128" W (4.60mm x 3.24mm)

data sheet

Ứng dụng sản phẩm
