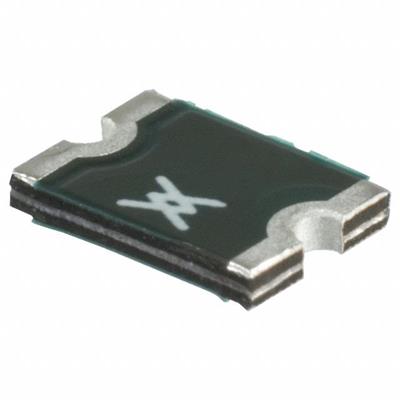

SMD1812-260/16

Giá: 1.800₫ Còn hàng

PTC Resettable Fuse 16V 2.6A Ih Surface Mount 1812 (4532 Metric), Concave

PTC Resettable Fuse 16V 2.6A Ih Surface Mount 1812 (4532 Metric), Concave
Voltage - Max     16V
Current - Max     100A
Current - Hold (Ih) (Max)     2.6A
Current - Trip (It)     5.2A
R Min/Max     0.015 ~ 0.047 Ohm
Time to Trip     2.5s
Mounting Type     Surface Mount
Package / Case     1812 (4532 Metric), Concave

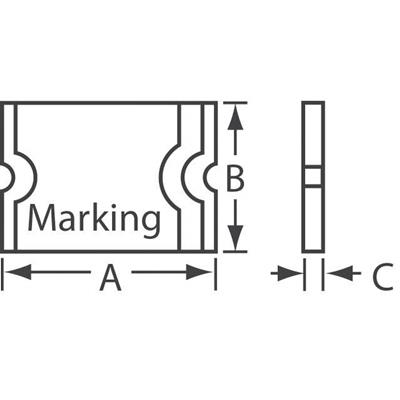

Size / Dimension     0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max)     -
Thickness (Max)     0.051" (1.30mm)

data sheet
