MINISMDC050F-2

Giá: 1.500₫ Còn hàng

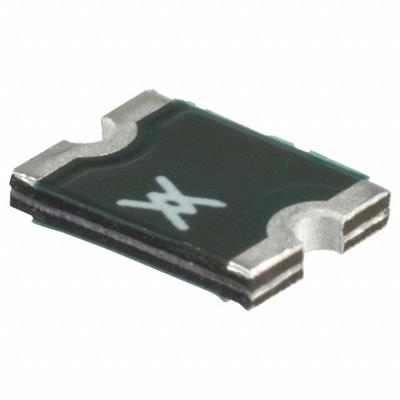

PTC Resettable Fuse 24V 500mA Ih Surface Mount 1812 (4532 Metric), Concave

PTC Resettable Fuse 24V 500mA Ih Surface Mount 1812 (4532 Metric), Concave
Voltage - Max     24V
Current - Max     100A
Current - Hold (Ih) (Max)     500mA
Current - Trip (It)     1A
R Min/Max     0.150 ~ 1.000 Ohm
Time to Trip     0.15s
Mounting Type     Surface Mount
Package / Case     1812 (4532 Metric), Concave

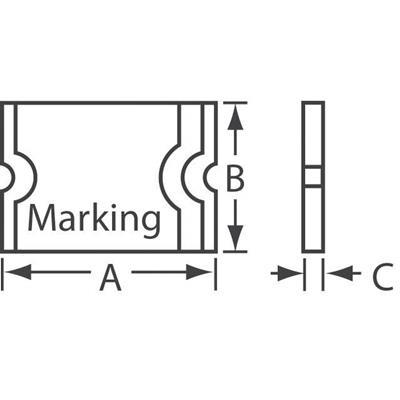

Size / Dimension     0.179" L x 0.128" W (4.55mm x 3.24mm)

data sheet
